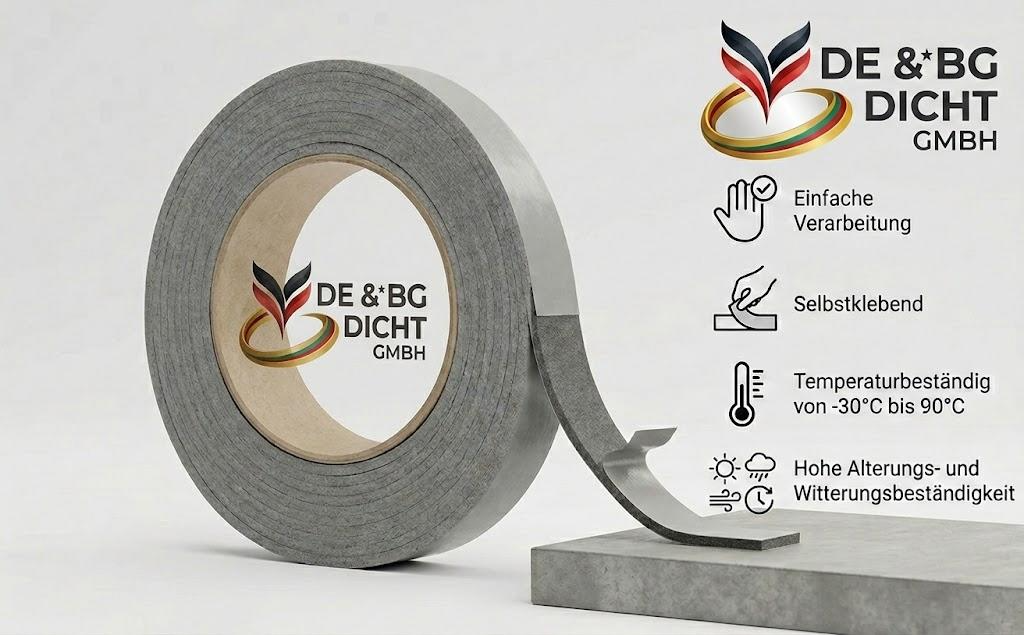

Joint sealing tape 20/2-4 mm, 12.5m, grey

The joint sealing tape 20/2-4 mm, 12.5m, grey, according to DIN 18542 BG1, is a joint sealing tape made of impregnated foam. It serves as primary sealing for joints and connections exposed directly to weather. In addition to sealing against wind, dust, and splashing water, it also provides sound and thermal insulation. This immediately reduces energy costs and preserves the value of the building structure.

Areas of application:

• Window construction, interior finishing
• Facade construction (also natural stone)
• ETICS, timber frame construction, wood and metal construction
• Prefabricated construction, container construction, noise barrier construction, roof construction (e.g., windproof connection of foils) and much more.

Delivery form:

• pre-compressed on a roll
• Color: grey
• Cut width: 20mm
• Joint area: 2-4mm
• Roll length: 12.5m
• Maximum decompressed approx. 13 mm

Building material class/Fire behavior: DIN 4102-1 B1 (flame retardant)

Resistance to salts and alkaline environment: BRL-K407/02 Requirements fulfilled according to guideline

Joint air permeability coefficient (a-value): DIN EN 12114 a < 1.0 m³ /[h·m·(daPa)n]

Joint sound insulation ift-guideline: SC-01/2; 2002-09 R ST; w; max = 55 dB

Impregnation basis: Acrylic dispersion with flame-retardant properties

Long-term durability: 10-year function guarantee according to manufacturer's terms and conditions

Airtightness: DIN EN 12114 at < 1.0 m³/[h·m·(daPa)2/3]

Material: Polyurethane soft foam, grey or black

Driving rain impermeability: DIN EN 1027 DIN 18542 BG1 > 600 Pa

Temperature resistance: DIN 18542 BG1 -30 °C to +90 °C

Width: 20 mm

Color: gray

Joint area: 2-4 mm

Length: 12.5 m
