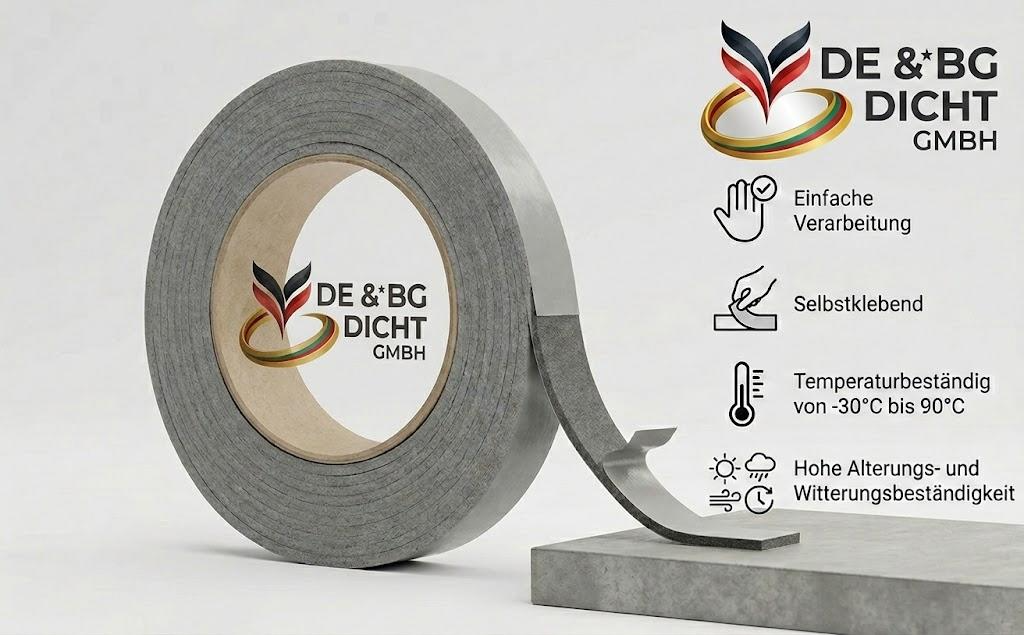

Joint sealing tape 25/5-10 mm, grey, 5.6 m

The joint sealing tape 25/5-10 mm, grey, 5.6 m according to DIN 18542 BG1 is a joint sealing tape made of impregnated foam. It is used for primary sealing of directly exposed joints and connections. In addition to sealing against wind, dust and splash water, it also provides sound and thermal insulation. This immediately reduces energy costs and protects the building structure, preserving its value.

Areas of application:

• Window construction, interior fitting
• Facade construction (also natural stone)
• ETICS, timber-frame construction, wood and metal construction
• Prefabricated construction, container construction, noise control construction, roof construction (e.g. wind-tight connection of foils) and much more.

Delivery form:

• pre-compressed on roll
• Colour: grey
• Cut width: 25mm
• Joint range: 5-10mm
• Roll length: 5.6 m
• maximum decompressed approx. 28 mm

Building material class/Fire behavior: DIN 4102-1 B1 (flame retardant)

Resistance to salts and alkaline environment: BRL-K407/02 Requirements met according to guideline

Joint air permeability coefficient (a-value): DIN EN 12114 a < 1.0 m³ /[h·m·(daPa)n]

Joint sound insulation ift-guideline: SC-01/2; 2002-09 R ST; w; max = 55 dB , max = 55 dB , w , SC-01/2; 2002-09 R ST

Impregnation basis: Acrylate dispersion with flame-retardant properties

Long-term durability: 10-year function guarantee according to manufacturer's terms and conditions

Airtightness: DIN EN 12114 a < 1.0 m³/[h·m·(daPa)2/3]

Material: Polyurethane foam gray or black

Driving rain impermeability: DIN EN 1027 DIN 18542 BG1 > 600 Pa

Temperature resistance: DIN 18542 BG1 -30 °C to +90 °C

Width: 25 mm

Color: gray

Joint area: 5-10 mm

Length: 5.6 m
